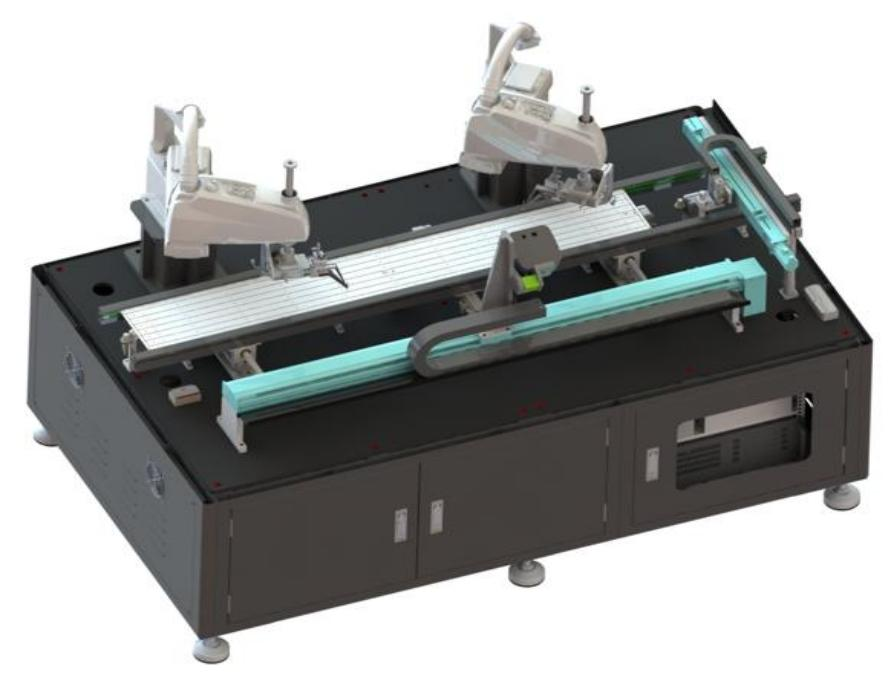

LED Optoelectronic Module Automatic Tester
Product Features
- Fully automatic positioning, unattended operation, high-precision optical inspection
- 🔹 Extensions: Adaptive compensation for integrating sphere/dark box environments; joint color temperature and brightness calibration algorithm; flexible switching across multiple module specifications; IP5X dust protection rating.
Product Details
Precision metrics:Brightness ±2%, color temperature ±50K, xy coordinates ±0.002.
Technical Extensions:
1. Environment Compensation:Built-in ambient light and temperature sensors continuously correct for drift in the integrating sphere wall reflectance and detector thermal drift, ensuring consistent test data over 8 hours.
2. Joint Calibration:Calibrate using a 2D lookup table of color temperature and brightness to eliminate cross-coupling errors from single-parameter calibration. Ideal for high-CRI LED testing.
3. Flexible SwitchingThe robotic end-effector supports quick-change suction cups or grippers. Combined with visual template matching, it is compatible with over 5 different module sizes, with changeover time under 5 minute(s).
4. Clean Design:Key moving components use dust-free drag chains and sealed rails. The test chamber maintains positive pressure to prevent dust contamination of optical components, ensuring test accuracy.
