P6831 — PXIe 8-Channel Source Measure Unit

Product Features

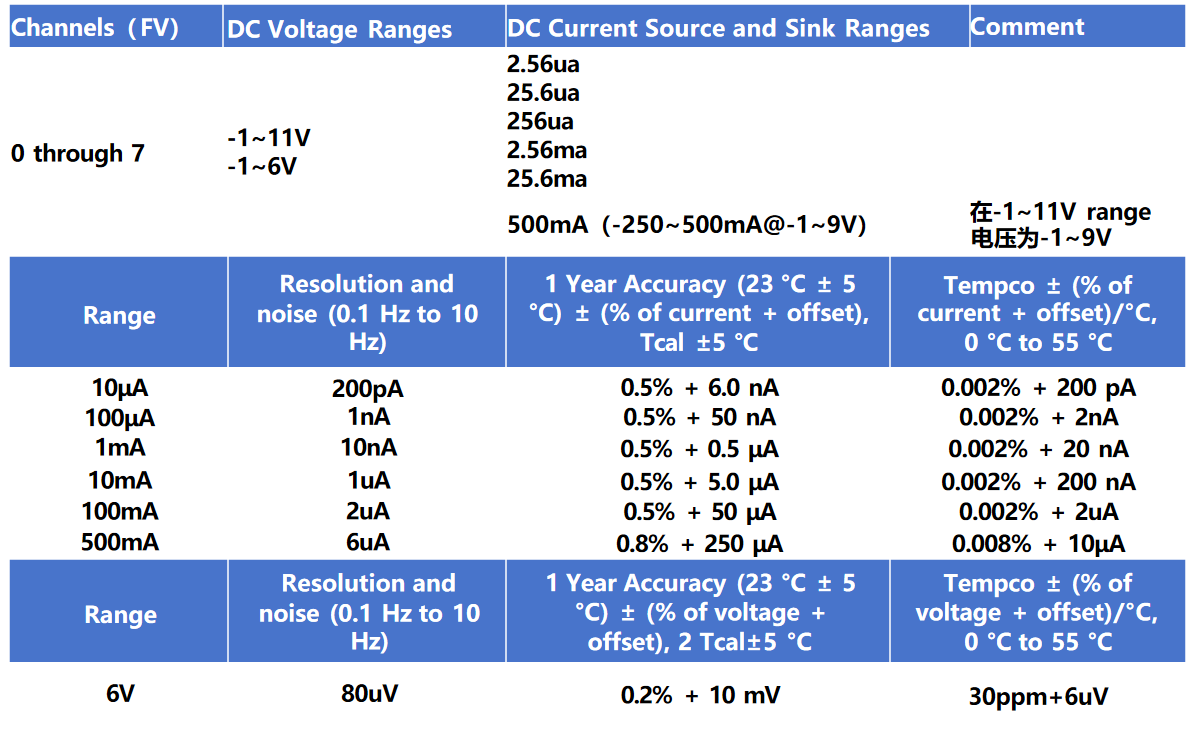

• 8-channel design, voltage range -1 to +11 V, current range -1 to +6 V
• Current resolution as low as 2.56μA to 500mA with automatic multi-range switching
• Voltage resolution: 80 μV; accuracy over 1 years: 0.2% + 1 mV
• Supports wide-range voltage output, ideal for test scenarios requiring negative and high-voltage outputs.
