P8522 — PXIe Digital Pattern Instrument (32 channels, expandable to 512/1024 channels)

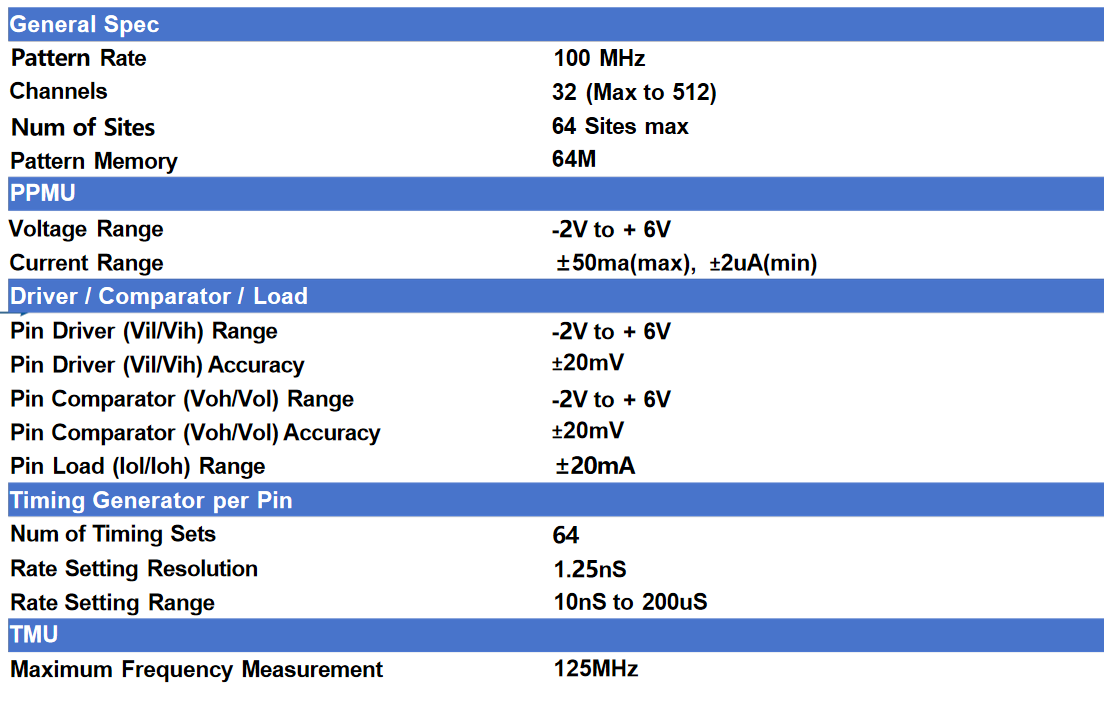

Product Features

• 32 independent channels, expandable to 512/1024 channels, supporting 64 sites
• Interface definition compatible with NI 6571; no need to replace test peripheral hardware.
• Pattern rate up to 100MHz, pattern memory 6 4M
• Integrates PPMU (Precision Power Measurement Unit), supporting -2V~+6V voltage range and ±50 mA current range.
• Each pin supports 64 timing sets and enables frequency measurement up to 125MHz.
